A 5-way kitchen faucet (often called a 5-way mixer or multifunction faucet) is a specialized plumbing fixture designed to dispense multiple types of water through a single tap body.
Unlike a standard faucet that only mixes hot and cold tap water, a 5-way faucet is engineered to accommodate filtered water (or other specialized water types) without requiring a separate, dedicated faucet hole in your sink.
Here is a breakdown of how it works and why it is called "5-way":
1. The "5 Ways" (Channels)

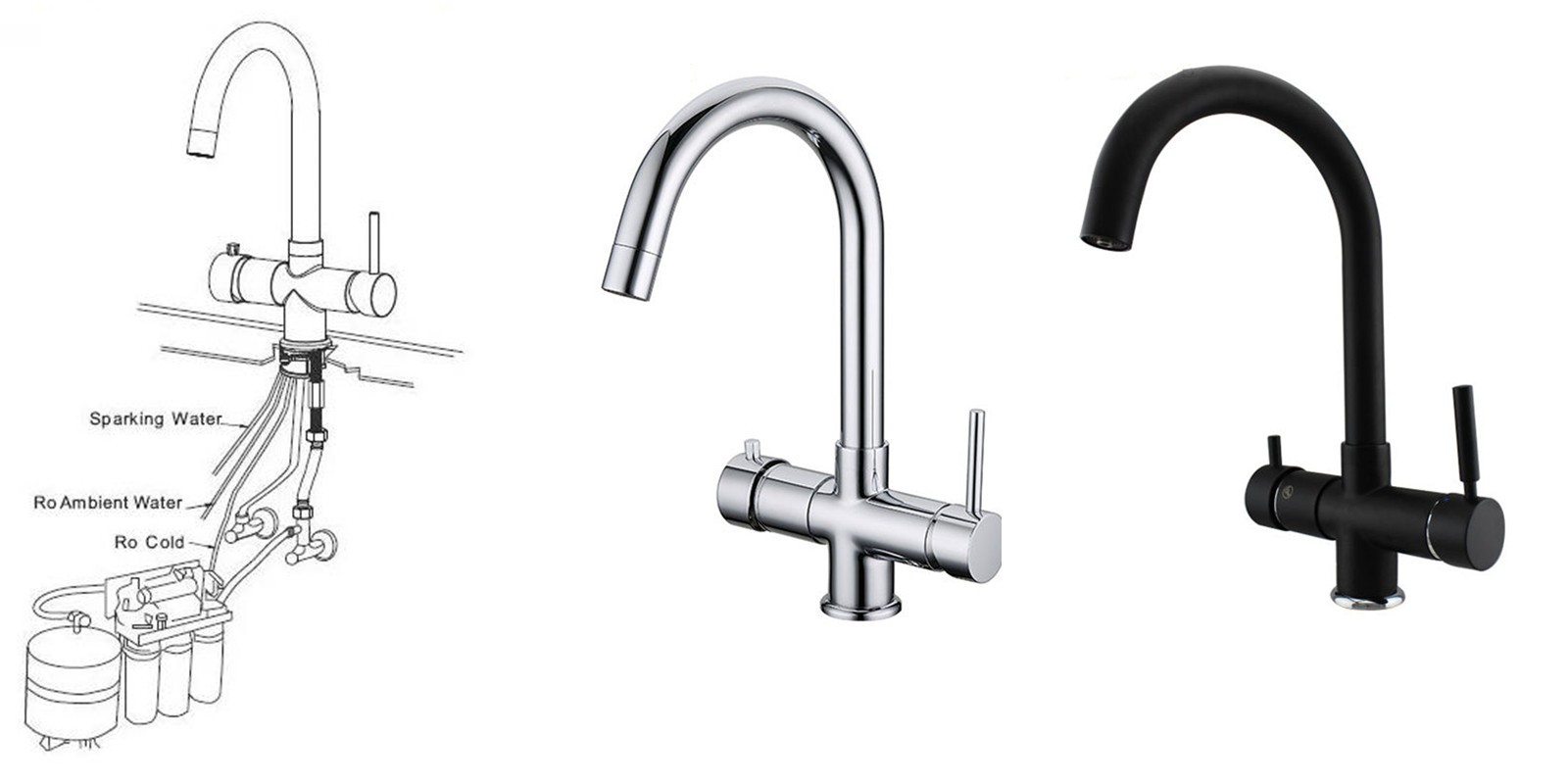

The name refers to the internal waterways or connection points built into the faucet mechanism. While designs vary, the standard configuration typically handles these lines:
-
Hot Water Input: Standard household hot water.
-
Cold Water Input: Standard household cold water.
-
Mixed Water Output: The combination of hot and cold tap water.
-
Filtered Water Input: Water coming from a filtration system (like an RO filter or carbon filter).
-
Filtered Water Output: The dedicated stream of purified water.
Note: Some models use the term to describe different spray patterns (Stream, Spray, Pause, etc.) combined with filtered water, but the plumbing definition above is the most common industry standard.
2. How It Works
-
Dual Functionality: The faucet has two separate internal channels. One channel handles standard tap water (hot/cold mix), and a completely separate channel (usually made of food-grade materials like stainless steel or PEX) carries filtered water. This ensures the filtered water never touches the potentially contaminated copper or brass of the hot/cold water lines.
-
Control Mechanism: These faucets usually feature a diverter mechanism.
-
Handle Control: Often, turning the main handle controls the tap water, while a separate knob, button, or a specific turning motion activates the filtered water.
-
Independent Outlet: Some designs have a dedicated spout outlet just for the filtered water, while others use the same main spout but keep the water paths isolated internally.
3. Key Benefits
-
Aesthetics & Space Saving: You do not need to drill a second hole in your countertop or sink for a separate drinking water faucet. This creates a cleaner, minimalist look.
-
Convenience: You get instant access to drinking water right at your main sink tap.
-
Safety: The internal separation ensures there is no "cross-contamination" between unfiltered tap water and your purified drinking water.
Summary
In short, a 5-way kitchen faucet is an all-in-one solution that replaces the need for a standard kitchen faucet AND a separate water filter faucet. It is commonly used with Reverse Osmosis (RO) systems or under-sink water filters.
